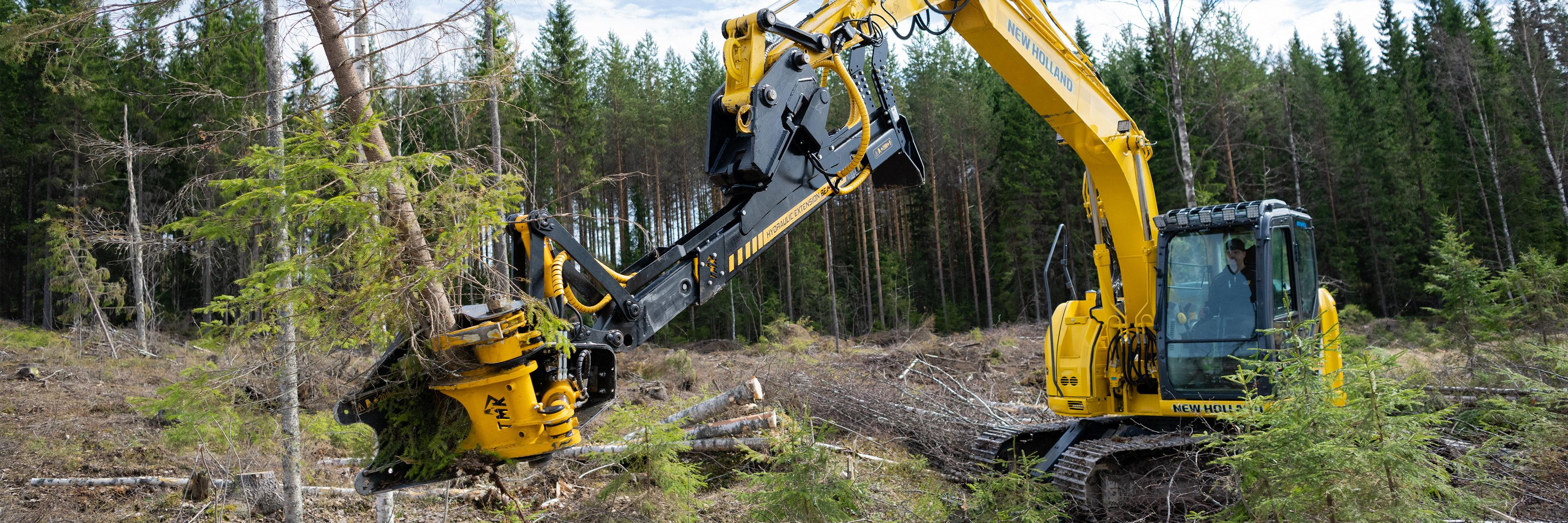

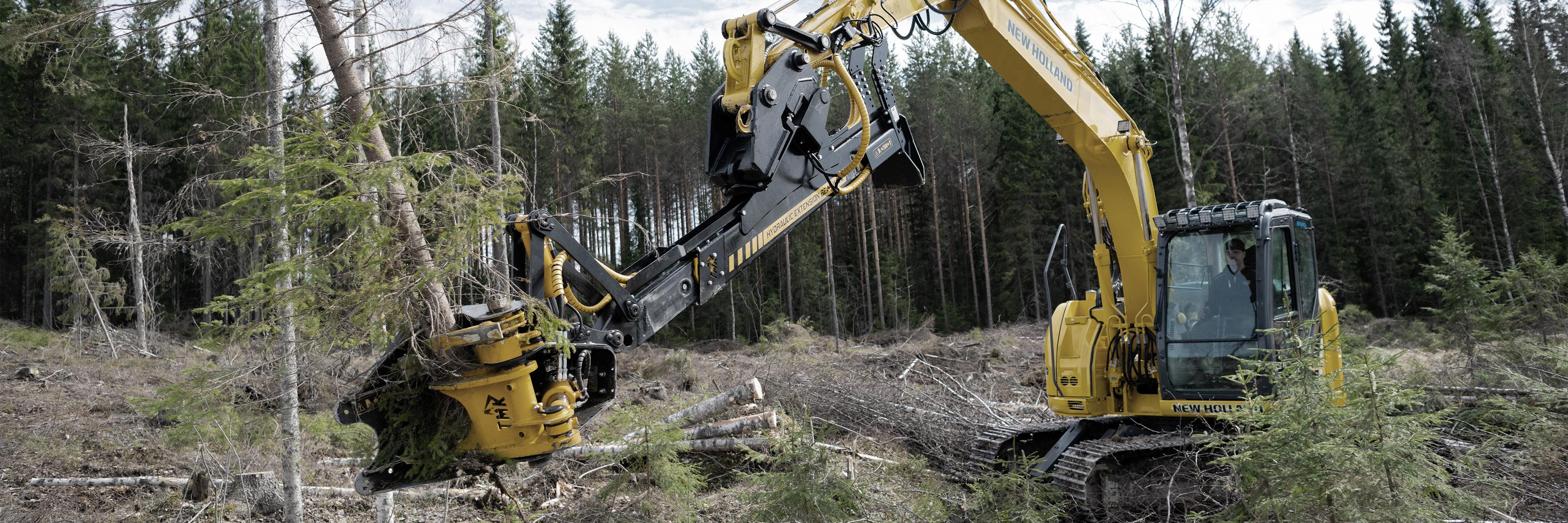

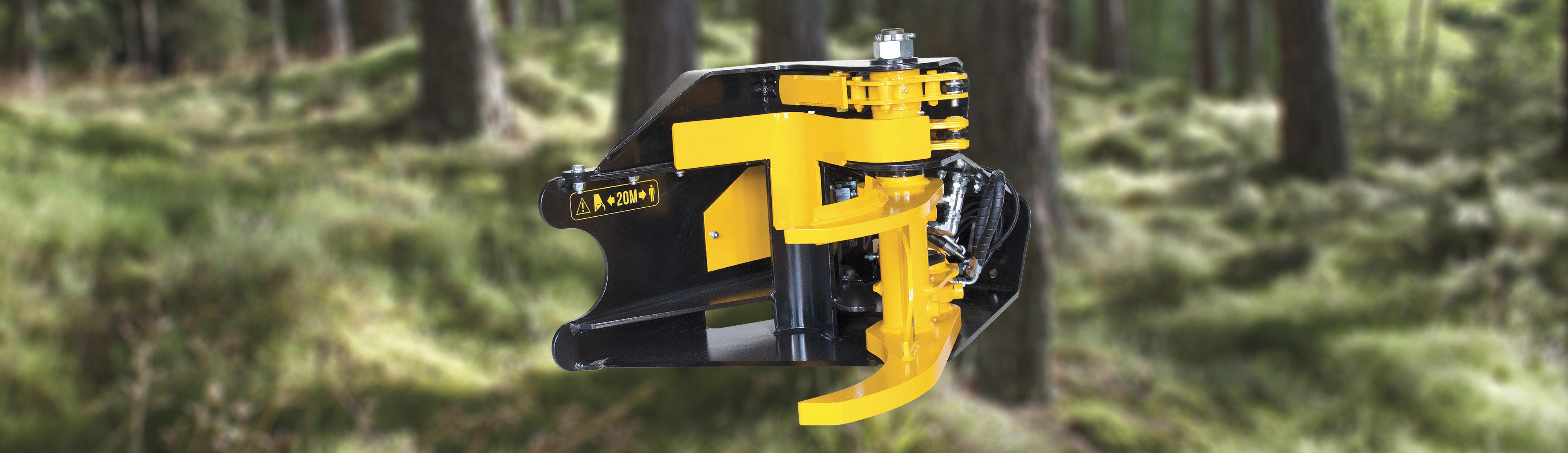

TMK 300

Authentic and original

TMK 300 is the beginning of the TMK product family. TMK 300 has the widest attachment options of all TMK products, and that makes TMK 300 into one of the most versatile shears on the market. Easy operating makes the TMK 300 a great choice for small scale users, and with very high productivity it fits perfectly for the professionals in the industry.

300 mm (11,8 in)

260 kg (570 lb)

5-20 ton kg (11-44 ton lb)

More about the TMK 300
+

Our product family’s matriarch weighs only 260 kg (570 lb), which makes it possible to use it even on a 5 ton kg (11 ton lb) excavator, but it also endures the stress from a 20 ton kg (44 ton lb) excavator. Thanks to the capsular structure and efficient blade, 300mm (11,8 in) tree can be cut neatly. Shear can be used also in the bigger miniloaders and skid steers. Recommended hydraulic pressure for TMK 300 is 180-300 Bars (2610-4350 psi), depending on the chosen cylinder.

Attachments

Efficient attachments will widen your work possibilities.

Grow with your work
+

BrushGrapple

All the foresters know that the small and nimble twigs are a pain in the bum, especially in the springtime. They seem to always find a little gap where to squeeze in and come up with roots and make a mess, which does not please the chipper operator either. Our BrushGrapple removes the gap between the grapple and the blade and now the twigs won’t have any space where to squeeze in from. The Grapple has a one way sharpened blade which acts like a pair of scissors and makes sure even the smallest sticks are cut down cleanly with ease. And the best part is that it also helps a bit with the bigger trees, now that’s what we call a win-win.

BrushBlade

With the TMK BrushBlade you can make sure that even the smaller twigs are cut cleanly. The bolt-on extra blade is sharpened one way and removes the extra gap between the blade and the grapple arm. This creates even more of a scissor-like motion and even the most flexible little bushes get cut cleanly. The chipper operators dream! TMK BrushBlade is good for trees between 0 – 15cm and should not be used for larger trees.

Tilting unit

Do you want to cut overhanging branches? Or just operate in unloved terrain efficiently and leave the stump as low as possible? Or need a little bit more agility to stack the trees neatly? The tilting unit is just the feature for you. Tilt fits both TMK 300 and TMK 400 and is robust enough to withstand the challenges of hard work in the forest. It tilts 90° both ways, so it’s a great tool to cut down overhanging branches, but also gives more agility to operating the shear and moving the cut down timber. Tilt can be controlled with a separate hydraulic line, or with the same line as the shear with the help of a 6/2 electric valve.

Collector

The collector increases the productivity of the shear significantly. Collector works automatically with open-close motion all the way to the point where the bunch is dropped. When the shear is closed, the collector opens up to the other side of the trees, and when the shear is opened again, the collector first grabs the trees firmly in its grip. This way the trees stay all the time firmly in hand. Only when the bunch is dropped one electric line is needed to let the bunch go from the grip. Collectors simple operation enables fast and comfortable working. Thanks to its high productivity, the collector is TMKs most popular attachment worldwide.

NEW! Collector is now available also without electricity! Ask more from your local dealer, or directly from TMK.

Delimber

Delimbing gives the last touch to the tree clearing as well as the TMK 400, TMK 300 & TMK 200 attachment package. TMK has the first easilly controllable delimber on the market without expensive feeding systems. Delimbing is smooth thanks to the diamond shaped delimber hole. This shape gives the shear a little room to tilt before snapping the tree with the blade. This way is ensured a fast and smooth motion, when the delimbing is fast and more importantly easy. In the nordic countries the delimber is really common attachment because of the demand of stripped trees. Delimber is also possible to use without electricity, and delimber is also easy to retrofit.

Hydraulic extension beam

Hydraulic extension beam is professionals choice. Attached to the quick hitch, the hydraulic extension produces the much needed extra reach to the professionals, without sacrificing the agility. Extension beam is about 2 meters long and extends another 1,6 meters. With hydraulic extension beam it’s possible to get about 3,6 meters of extra reach, depending on the place of the bracket. Using the extension is simple and going back to excavation jobs is fast and easy. In the designing process of the beam we have kept in mind the needed features at forest thinnings and clearences, and the machine fits to turn even in the tightest of places with the extension on. The heel of the extension is strengthed and can be used to help the excavator to move in challenging places.

Solid extension beam

TMK 300 can be equipped with solid extension beam. Bolt attached plates enables the beam to be taken off easily, if it doesn’t suit the job at hand. Extension is a good fit especially with delimber, as it makes the motion faster and smoother thanks to longer reach. Solid extension was designed to work with tiltrotators to ensure that the sensitive hoses doesn’t get damaged in the bushes, but kept in a safe distance from the branches and minimize the damages.

Solid linkage

TMKs Linkage brings more speed and versatility to TMK Tree  Shears use. Linkage was originally designed to speed up the working with hydraulic extension beam, but now it enables the shear to be used in machines that doesn’t have a feature to tilt  the shear up and down. Now we can offer a solution to use the shear with tractor cranes and  harvesters. Linkage tilts 165 degrees, which ensures wide movements and small enough cylinder keep the motion fast. Linkage is attached to the shear with bolts, so it can be taken off quickly and used again on a different machine when needed.

NEW! In cooperation with Palfinger we made a linkage that is fits directly to all EPSOLUTION series cranes! Ask more from your local dealer, or directly from TMK.

Fitting plate

Brackets are on bolt-on fitting plates, this makes it possible to use the shear with multiple machines.

Splitting blade

With the splitting blade you can finalize the trees cut with the shear, without unnecessary hassle. The splitting blade attaches to the side of the shear with three bolts. Splitting blade works best with the bolt-on-blade models, when you can also load or move the trees with the same shear.

Heel

With the heel you get more support and reliability to the shear when moving in any terrain. You can safely take support with it, no matter the size of the machine. The heel attaches to the backside of the shear with bolts offering good support point when moving with the machine.

Cylinder Options

TMK 300 can be eqipped with different cylinder options.

1. Normal main cylinder, This is what we started with in Europe. When your machine has around 300 bars of pressure, the normal main cylinder is the safest choice.
2. Bigger main cylinder, When the first shears were tested abroad, we noticed that there wasn’t enough power. Pressure was often limited to 220 – 250 bars and the trees were harder, so the Bigger main cylinder was added to handle the situation.
3. TMK Turbo is a patented telescopic cylinder, where the smaller cylinder always works first and the bigger one joins in when smaller is runs out of power. This way we are able to combine small cylinders quickness and bigger cylinders power in one casing. TMK Turbo grows your working productivity up to 15%!
4. HD cylinder, The power house especially for smaller machines and North-American market. When the pressure is limited but we still need to take down big trees, the HD answers the call. With 34,5 tn force – even a smaller machine can take down the giants.
