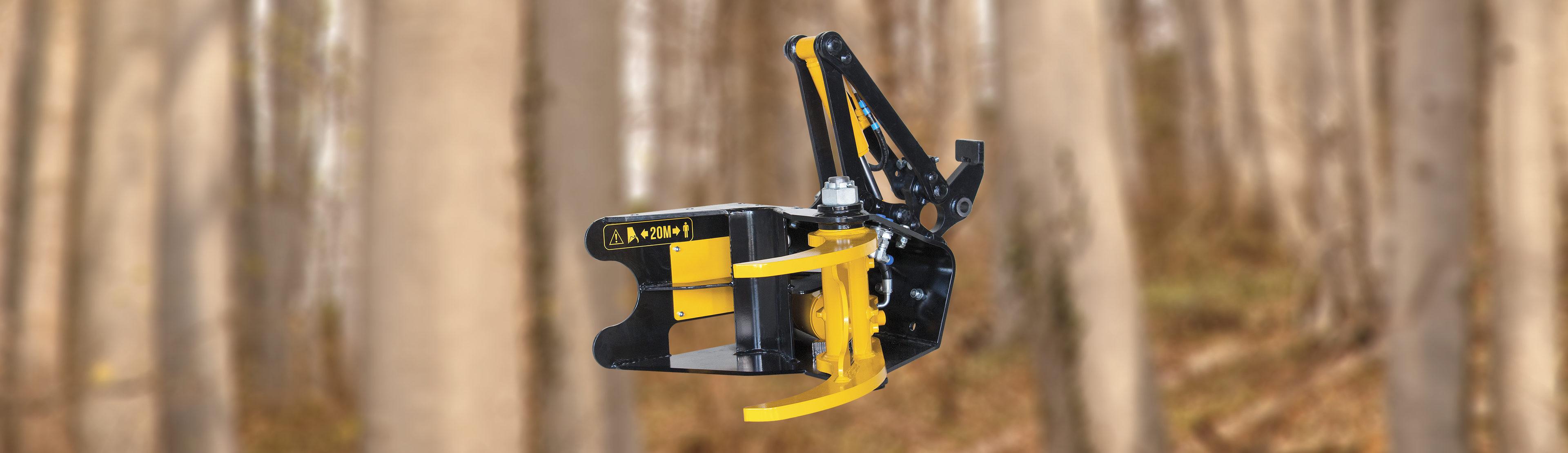

TMK 200

"Beaver"

TMK 200 ”Beaver” is the newest addition to TMK product family. Beavers small size and precisely designed structure makes the shear good fit to for example tractor cranes, miniloaders and small excavators. This powerhouse, weighing only 150 kg (330 lb), cuts 200 mm (7,87 in) tree comfortably.

200 mm (7,87 in)

150 kg (330 lb)

2-8 ton kg (4,4-18 ton lb)

More about the Beaver
+

Thanks to its light weight and strong capsular structure TMK 200 fits to wide range of works from ditch clearences to forest thinnings. Custom shaped blade keeps the big trees close to the grapple, maximising the cutting force, and scirror-like cutting motion cuts neatly also the smaller bushes and leaves a really clean cut. TMK Beavers recommended hydraulic pressure is 180 -300 Bars (2610-4350 psi) depending on the chosen cylinder.

Attachments

Efficient attachments will widen your work possibilities.

Grow with your work
+

BrushBlade

With the TMK BrushBlade you can make sure that even the smaller twigs are cut cleanly. The bolt-on extra blade is sharpened one way and removes the extra gap between the blade and the grapple arm. This creates even more of a scissor-like motion and even the most flexible little bushes get cut cleanly. The chipper operators dream! TMK BrushBlade is good for trees between 0 – 15cm and should not be used for larger trees.

Hanging linkage

The hanging linkage is the tractor contractors safe bet. Working with tree grab is already familiar and the same work habits have grew strong and is wanted to use also with the tree clearing. Hanging linkage is attached to the rotator in the cranes, so the shear handles exactly the same as all the other attachments in cranes before. Shear can be rotated as well as tilted, which will help on the loading and unloading. However the hanging linkage is not as accurate when working with bushes and less efficient with delimber due to the extra movable joint.

Collector

The collector increases the productivity of the shear significantly. Collector works automatically with open-close motion all the way to the point where the bunch is dropped. When the shear is closed, the collector opens up to the other side of the trees, and when the shear is opened again, the collector first grabs the trees firmly in its grip. This way the trees stay all the time firmly in hand. Only when the bunch is dropped one electric line is needed to let the bunch go from the grip. Collectors simple operation enables fast and comfortable working. Thanks to its high productivity, the collector is TMKs most popular attachment worldwide.

NEW! Collector is now available also without electricity! Ask more from your local dealer, or directly from TMK.

Delimber

Delimbing gives the last touch to the tree clearing as well as the TMK 400, TMK 300 & TMK 200 attachment package. TMK has the first easilly controllable delimber on the market without expensive feeding systems. Delimbing is smooth thanks to the diamond shaped delimber hole. This shape gives the shear a little room to tilt before snapping the tree with the blade. This way is ensured a fast and smooth motion, when the delimbing is fast and more importantly easy. In the nordic countries the delimber is really common attachment because of the demand of stripped trees. Delimber is also possible to use without electricity, and delimber is also easy to retrofit.

Solid linkage

TMKs Linkage brings more speed and versatility to TMK Tree  Shears use. Linkage was originally designed to speed up the working with hydraulic extension beam, but now it enables the shear to be used in machines that doesn’t have a feature to tilt  the shear up and down. Now we can offer a solution to use the shear with tractor cranes and  harvesters. Linkage tilts 165 degrees, which ensures wide movements and small enough cylinder keep the motion fast. Linkage is attached to the shear with bolts, so it can be taken off quickly and used again on a different machine when needed.

NEW! In cooperation with Palfinger we made a linkage that is fits directly to all EPSOLUTION series cranes! Ask more from your local dealer, or directly from TMK.

Fitting plate

Brackets are on bolt-on fitting plates, this makes it possible to use the shear with multiple machines.

Splitting blade

With the splitting blade you can finalize the trees cut with the shear, without unnecessary hassle. The splitting blade attaches to the side of the shear with three bolts. Splitting blade works best with the bolt-on-blade models, when you can also load or move the trees with the same shear.

Heel

With the heel you get more support and reliability to the shear when moving in any terrain. You can safely take support with it, no matter the size of the machine. The heel attaches to the backside of the shear with bolts offering good support point when moving with the machine.

Cylinder options

TMK 200 can be equipped with different cylinder options.

1. Normal main cylinder, This is what we started with in Europe. When your machine has around 300 bars of pressure, the normal main cylinder is the safest choice.
2. Bigger main cylinder, When the first shears were tested abroad, we noticed that there wasn’t enough power. Pressure was often limited to 220 – 250 bars and the trees were harder, so the Bigger main cylinder was added to handle the situation.
3. TMK Turbo is a patented telescopic cylinder, where the smaller cylinder always works first and the bigger one joins in when smaller is runs out of power. This way we are able to combine small cylinders quickness and bigger cylinders power in one casing. TMK Turbo grows your working productivity up to 15%!
4. HD cylinder, The power house especially for smaller machines and North-American market. When the pressure is limited but we still need to take down big trees, the HD answers the call. With 34,5 tn force – even a smaller machine can take down the giants.

Videos

More videos
+

    Gallery

    More images
    +

    Technical Specifications

    Cylinders

    Dimensions
